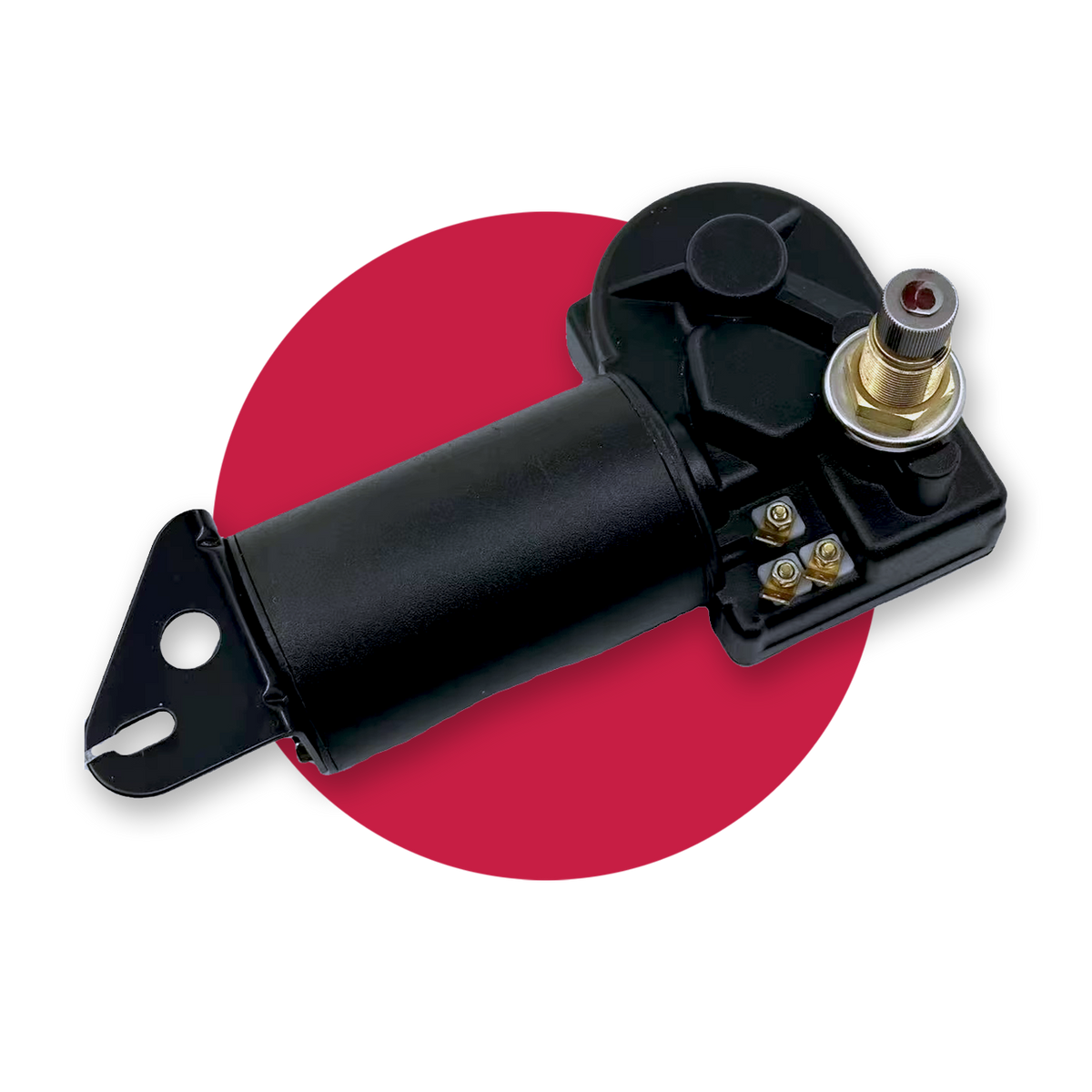

4R3.24.R110CE – 4R-Series CE Marine Wiper Motor, 3.5" Shaft, 24V, 110° Sweep
Quantity breaks and minimum order quantities are applied in the cart.
Specifications
The Autotex 4R3.24 Series are heavy-duty 24V CE-certified windshield wiper motors with a 3.5-inch threaded shaft and 110-degree default sweep. Part of Autotex's proven 4R-Series (WWF), trusted for decades in commercial, industrial, marine, and specialty vehicle applications. CE certification with isolated ground design makes these motors the right choice for regulated, export, and electronics-sensitive systems.
Choose between the standard white housing (4R3.24.R110CE) or black housing (4R3.24.R110CEB) — both are functionally identical.
Key Features
- 24V CE-certified windshield wiper motor
- Isolated ground — grounded through dedicated wire, not housing
- 110-degree default sweep angle, fully adjustable
- Coast-to-park functionality
- Left or right park position configurable
- 3.5-inch threaded stainless steel shaft with brass housing
- Available in white or black housing
- No connector — direct wire (color-coded leads)
Ideal For
- CE-compliant and export applications
- Equipment with sensitive electronics or isolated electrical systems
- Marine interiors and enclosed operator cabs
- Commercial vehicles, cranes, industrial equipment
Technical Specifications
| Voltage | 24V |
| Shaft Length | 3.5 inch threaded |
| Sweep Angle | 110 degrees (adjustable) |
| Park Function | Coast-to-park |
| Park Direction | Left or right configurable |
| Grounding | Isolated ground (wired) |
| Certification | CE certified |
| Variants | R110CE (white) · R110CEB (black) |
| Brand | Their part number | Part type | Our part | Product |
|---|
| Make | Model | Years | Note | Our part | Product |
|---|
Application data is a guide. Check the part number against the vehicle before fitting.
