    4R2.12-19S2.R110D – 4R-Series Wiper Motor, 2.5" Shaft, 12V, 110° Sweep, Two-Speed Switch

    SKU: 4R2.12-19S2.R110D
    Regular Price $179.99
    Motor Voltage: 12V
    Motor Shaft Length: 2"
    Motor Switch: Installed
    Build Your System
    Icon of cart
    Motor - Arm - Blade
    Icon of truck
    3 Simple Choices
    Icon of guarantee
    Description

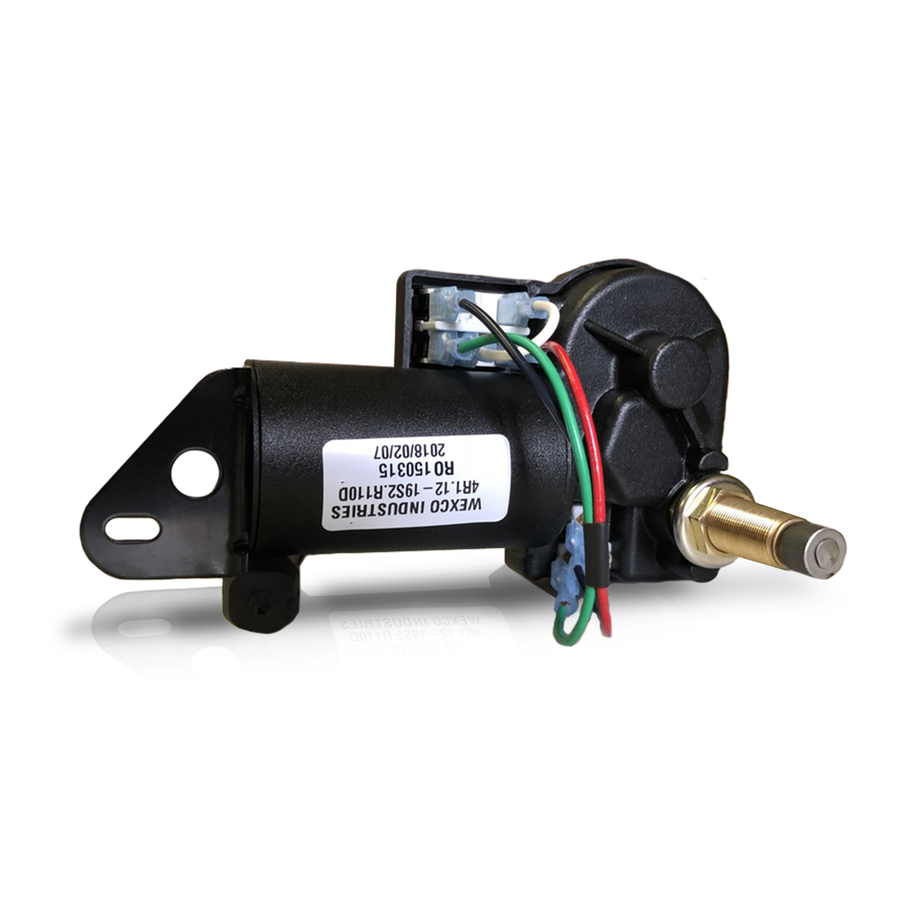

    The 4R2.12-19S2.R110D is a robust 12V wiper motor from the 4R-Series (WWF), designed for heavy-duty performance in commercial, industrial, marine, and specialty vehicles. Featuring a 2.5" shaft and an integrated two-speed switch, this high-torque motor delivers exceptional durability and reliability for demanding applications. Engineered for versatility, it offers adjustable sweep angles and compatibility with a wide range of wiper arm configurations, ensuring precise and consistent wiping performance in any environment. Whether facing harsh weather or rugged conditions, the 4R2.12-19S2.R110D provides unmatched strength and adaptability for optimal visibility.

    Product specifications
    Specification Name Specification Value
    Ce certified No
    Customer cross reference Grainger 49XF15, 90011,CATERPILLAR 227854, 2540010000000,United Technologies WWF12C19-720,United Technologies WWF12C19-1020
    Default wipe angle 110º
    Google custom label 0 4R-Motor
    Google custom label 1 OEM
    Google custom label 4 Universal
    Installation video
    Motor stall current 12 amps max
    Newton meters torque 18Nm
    On off switch included Yes
    Park position Right
    Related products table
    Size Range Part Number
    8"-11" 200722
    11"-14" 200714
    14"-18" 200717
    20"-24" 200718
    14"-18" 200715
    20"-24" 200716
    Shaft length 2"
    Speed rpm 12Nm
    Volts 12V
    Wipe angle 110 Degree
    Voltage 12V
    Shaft Length 2"
    Attribute name Attribute value
