4A3.24.R80CEB - Three and a half inch (3.5") shaft, 24V, 80 Degree Sweep, CE Certified

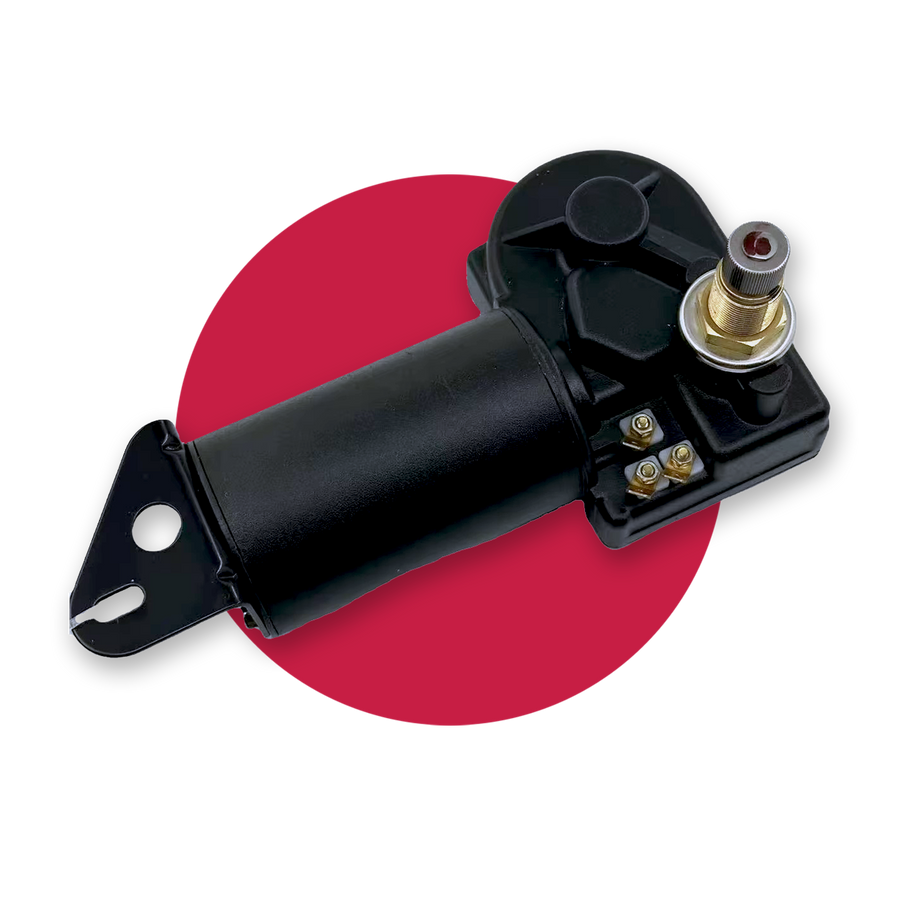

4A3.24.R80CEB – 24V CE-Certified Windshield Wiper Motor

3.5 Inch Shaft - 80 Degree Sweep

The WEXCO 4A3.24.R80CEB is a heavy-duty 24V windshield wiper motor engineered for commercial, industrial, marine, and specialty vehicle applications where CE certification and isolated grounding are required. This motor is part of WEXCO’s proven 4A Series, trusted globally for dependable performance, long service life, and flexible installation options.

Designed with coast-to-park functionality, an adjustable wipe angle, and a 3.5 inch threaded shaft, the 4A3.24.R80CEB delivers consistent wiping performance while meeting electrical compliance requirements for regulated, export, and CE-mandated systems.

Key Features

• 24V windshield wiper motor
• CE certified for compliant applications
• Isolated ground design with dedicated ground wire
• 80 degree default sweep angle
• Adjustable wipe angles available
• Coast-to-park functionality
• Configurable left or right park position
• 3.5 inch threaded shaft
• Stainless steel shaft with brass housing
• Medium torque output suitable for radial wiper arms
• Black painted motor housing
• Supplied with mounting hardware

Electrical Design Advantage

The CE version of this motor features an isolated ground electrical system, meaning the motor is grounded through a dedicated ground wire rather than through the housing. This design is ideal for:

• Applications requiring CE certification
• Equipment with sensitive electronics
• Systems where chassis grounding is not permitted
• Export or regulated environments

Typical Applications

• Commercial vehicles
• Industrial equipment
• Cranes and heavy machinery
• Marine interior installations
• Specialty vehicles
• Enclosed operator cabs
• Export and CE-compliant systems

Technical Specifications

• Voltage: 24V
• Sweep Angle: 80 degrees (adjustable)
• Shaft Length: 3.5 inch
• Shaft Type: Stainless steel shaft with brass housing
• Park Function: Coast-to-park
• Park Direction: Left or right configurable
• Grounding: Isolated ground (wired)
• Electrical Interface: Color-coded wire leads
• Housing Finish: Black
• Certification: CE certified

Need a Non-CE Option?

If CE certification or isolated grounding is not required, a functionally equivalent non-CE motor may be available. Contact us for assistance selecting the correct motor for your application.
