4A3.24.R110DCE - Marine Wiper Motor, 3.5" Shaft, 24V, 110 Degree Sweep, CE Certified
4A3.24.R110DCE Wexco Sealed Marine Wiper Motor: Three and a half inch (3.5") shaft, 12V, CE Certified - AutoTex

4A3.24.R110DCE – Marine Wiper Motor, 3.5" Shaft, 24V, 110° Sweep, CE Certified

SKU4A3.24.R110DCE
Ships in 1-3 business days
$159.99

Motor Voltage 24V
Motor Shaft Length 3"
Motor Switch Not Installed

Quantity breaks and minimum order quantities are applied in the cart.
Specifications
Vendor AutoTex
SKU 4A3.24.R110DCE
Barcode 837446003995
Volts 24V
Shaft Length 3"
Default Wipe Angle 110 Degree
Park Position Right
On/Off Switch Included No
Newton Meters (Torque) 18Nm
Speed (RPM) 12Nm
Motor Stall Current 6.1 amps max
CE Certified CE Certified

Need help finding the right part?

Our experts are here to help.

Ask an expert

4A3.24.R110DCE – 24V CE-Certified Marine Wiper Motor

3.5" Shaft – 110° Sweep – Sealed Housing

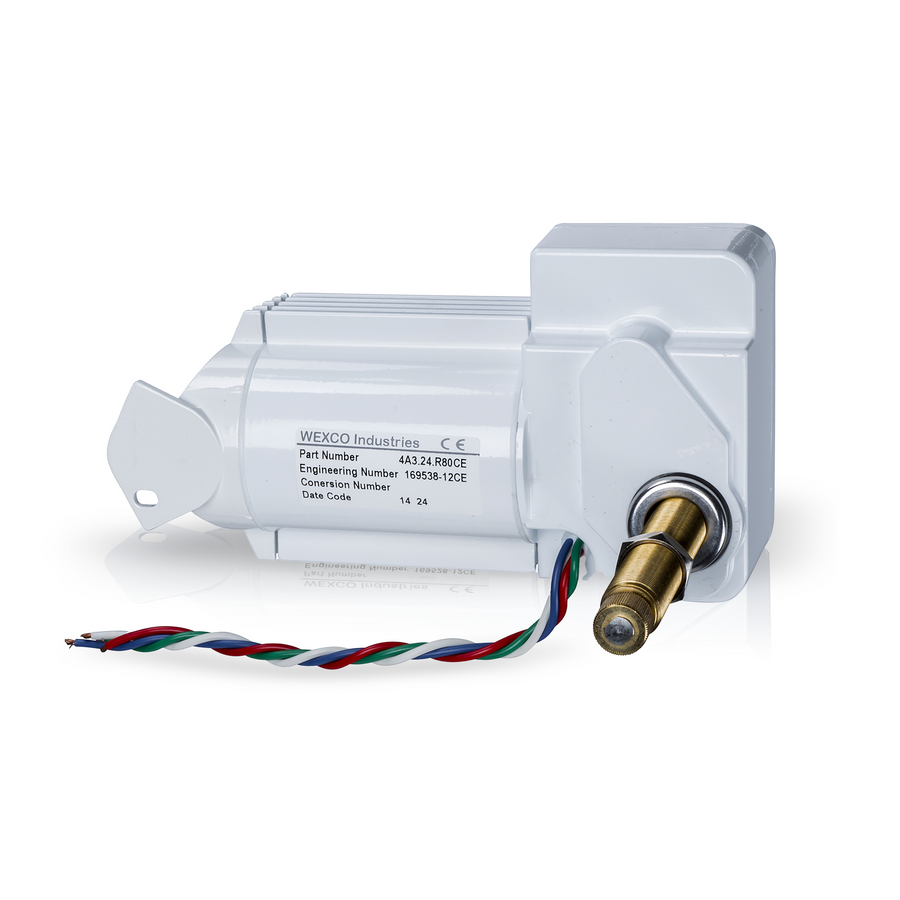

The WEXCO 4A3.24.R110DCE is a heavy-duty 24V CE-certified marine wiper motor with a sealed housing design for enhanced protection in demanding saltwater environments. Part of WEXCO’s proven 4A Series, this motor delivers dependable, long-service performance on commercial and recreational marine vessels.

Key Features

  • 24V CE-certified marine wiper motor
  • Sealed housing for enhanced environmental protection
  • 110° default sweep angle, adjustable
  • Coast-to-park functionality
  • Left or right park position configurable
  • 3.5" threaded stainless steel shaft with brass housing
  • Isolated ground — dedicated ground wire

Technical Specifications

Voltage 24V
Shaft Length 3.5"
Sweep Angle 110° (adjustable)
Park Function Coast-to-park
Default Park Position Right
Newton Meters (Torque) 18
Speed (RPM) 40 low / 60 high
CE Certified Yes

Wiper Arms

8"-11" 200722 Radial
11"-14" 200714 Radial
14"-18" 200717 Radial
20"-24" 200718 Radial
14"-18" 200715 Pantograph
20"-24" 200716 Pantograph
Loading cross references.

Open the full cross-reference lookup

Loading application data.

Application data is a guide. Check the part number against the vehicle before fitting.
