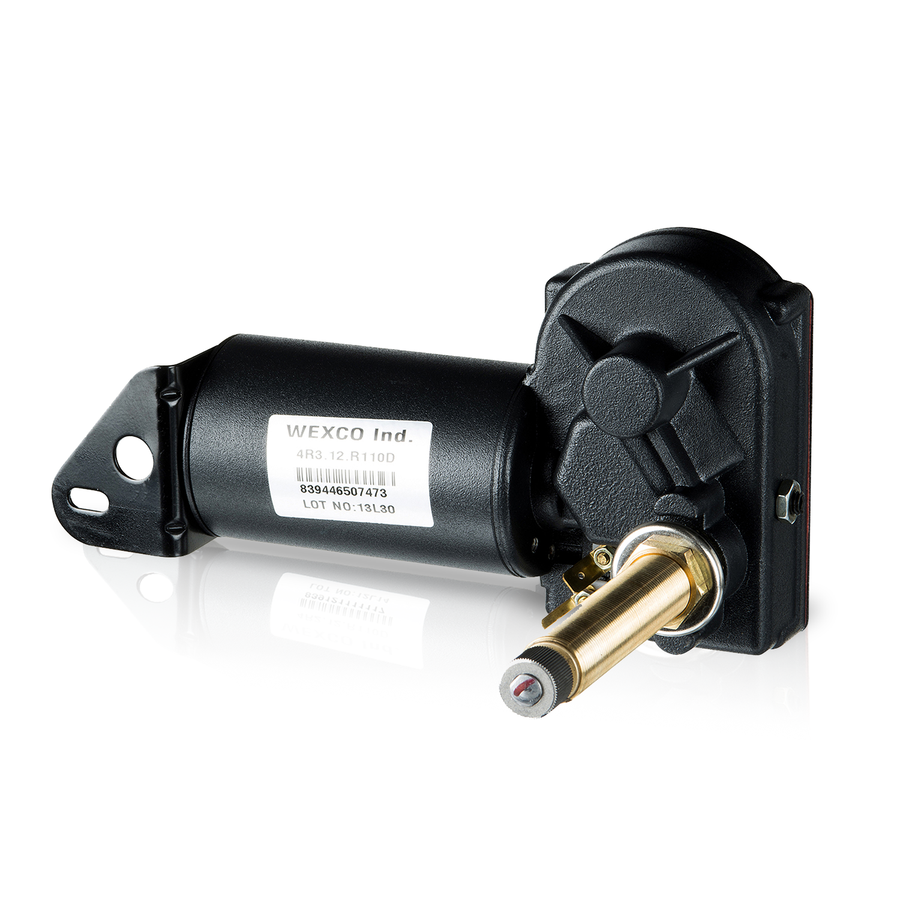

    4R3.12.R110CEBDIN – 4R-Series Wiper Motor, 3.5" Shaft, 12V, 110° Sweep

    SKU: 4R3.12.R110CEBDIN
    Regular Price $169.99
    Motor Voltage: 12V
    Motor Shaft Length: 3"
    Motor Switch: Not Installed
    Build Your System
    Icon of cart
    Motor - Arm - Blade
    Icon of truck
    3 Simple Choices
    Icon of guarantee
    Description

    The 4R3.12.R110CEBDIN is a robust 12V wiper motor from the 4R-Series (WWF), engineered for heavy-duty performance in commercial, industrial, marine, and specialty vehicles. Equipped with a 3.5" shaft, this high-torque motor delivers exceptional durability and reliability for demanding applications. Designed for versatility, it features adjustable sweep angles and compatibility with a wide range of wiper arm configurations, ensuring precise and consistent wiping performance in any environment. Built to withstand harsh weather and rugged conditions, the 4R3.12.R110CEBDIN provides unmatched strength and adaptability for optimal visibility.

    Product specifications
    Specification Name Specification Value
    Ce certified No
    Customer cross reference Grainger 2YPZ7,Balkamp 819-1077,Ongaro 32991,Marinco - AFI 34005,Marinco - AFI 34015,Marinco - AFI 38005,Ongaro 41535,Kalmar 4915160,United Technologies WWF12C1-730,United Technologies WWF12C17-730,United Technologies WWF12C18-730,Johnson Electric WWF12C1-730,Johnson Electric WWF12C18-730,Johnson Electric WWF12C17-730
    Default wipe angle 110º
    Google custom label 0 UTV
    Google custom label 1 OEM
    Google custom label 4 Construction
    Installation video
    Motor stall current 12 amps max
    Newton meters torque 18Nm
    On off switch included No
    Park position Right
    Related products table
    Size Range Part Number
    8"-11" 200722
    11"-14" 200714
    14"-18" 200717
    20"-24" 200718
    14"-18" 200715
    20"-24" 200716
    Shaft length 3"
    Speed rpm 12Nm
    Volts 12V
    Wipe angle 110 Degree
    Voltage 12V
    Shaft Length 3"
