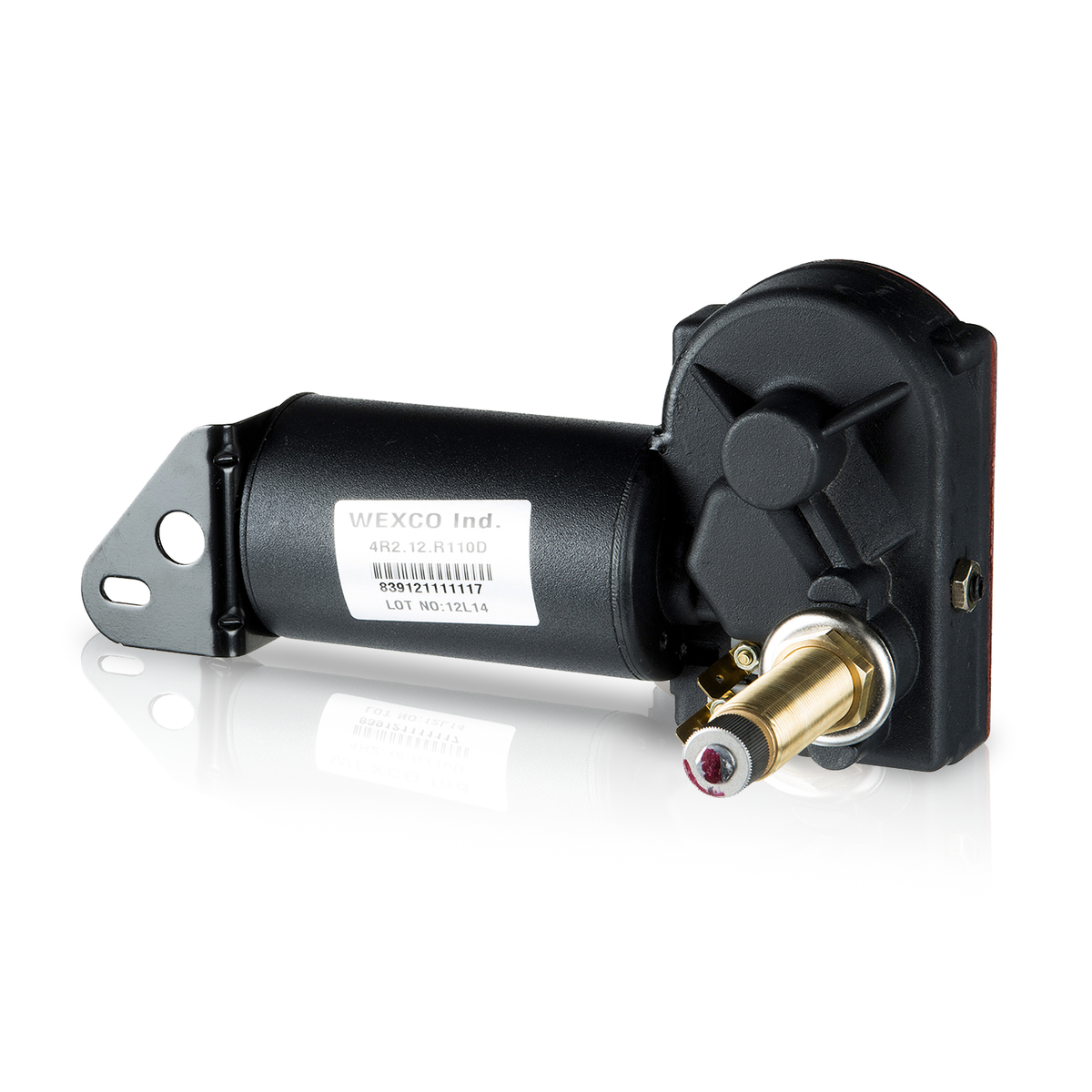

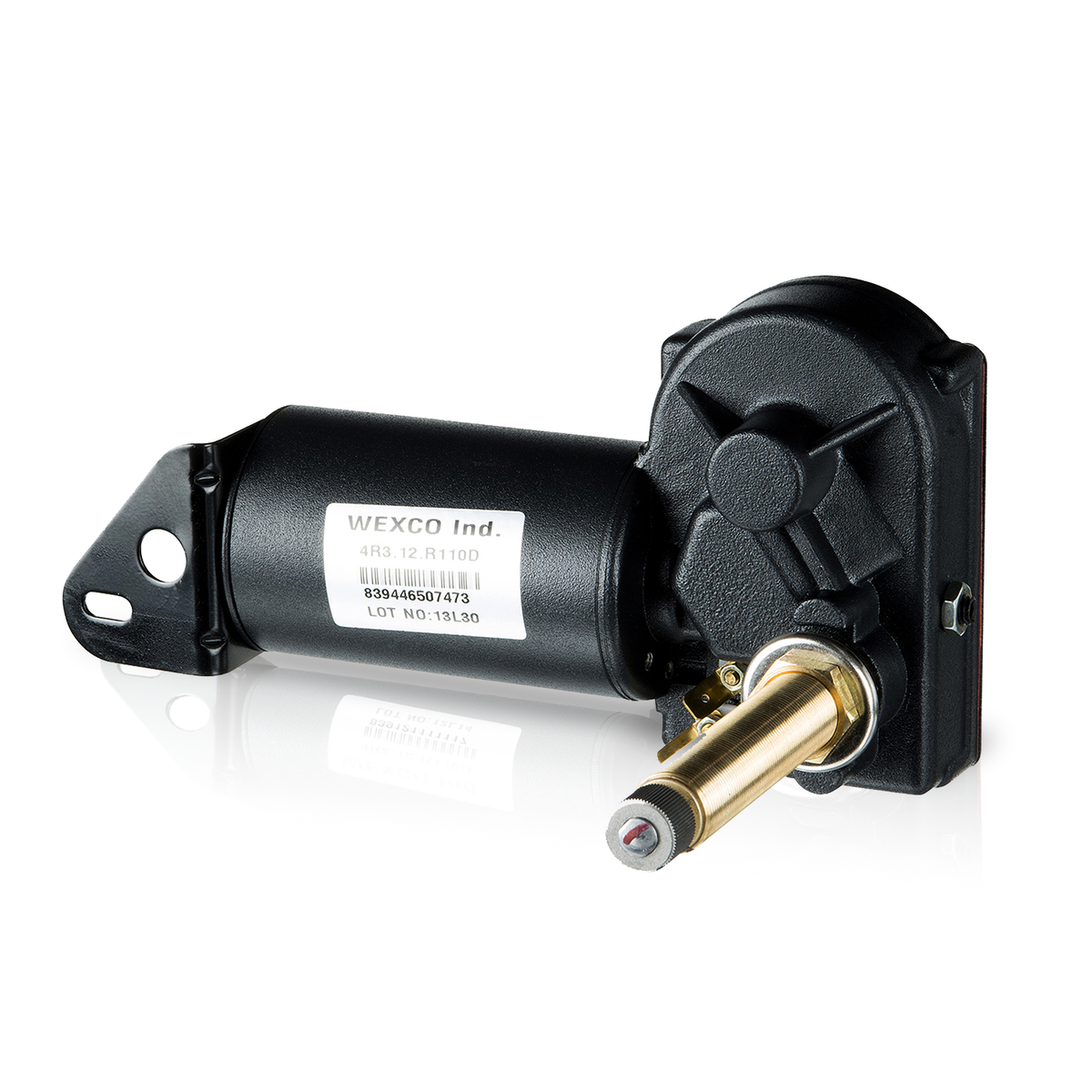

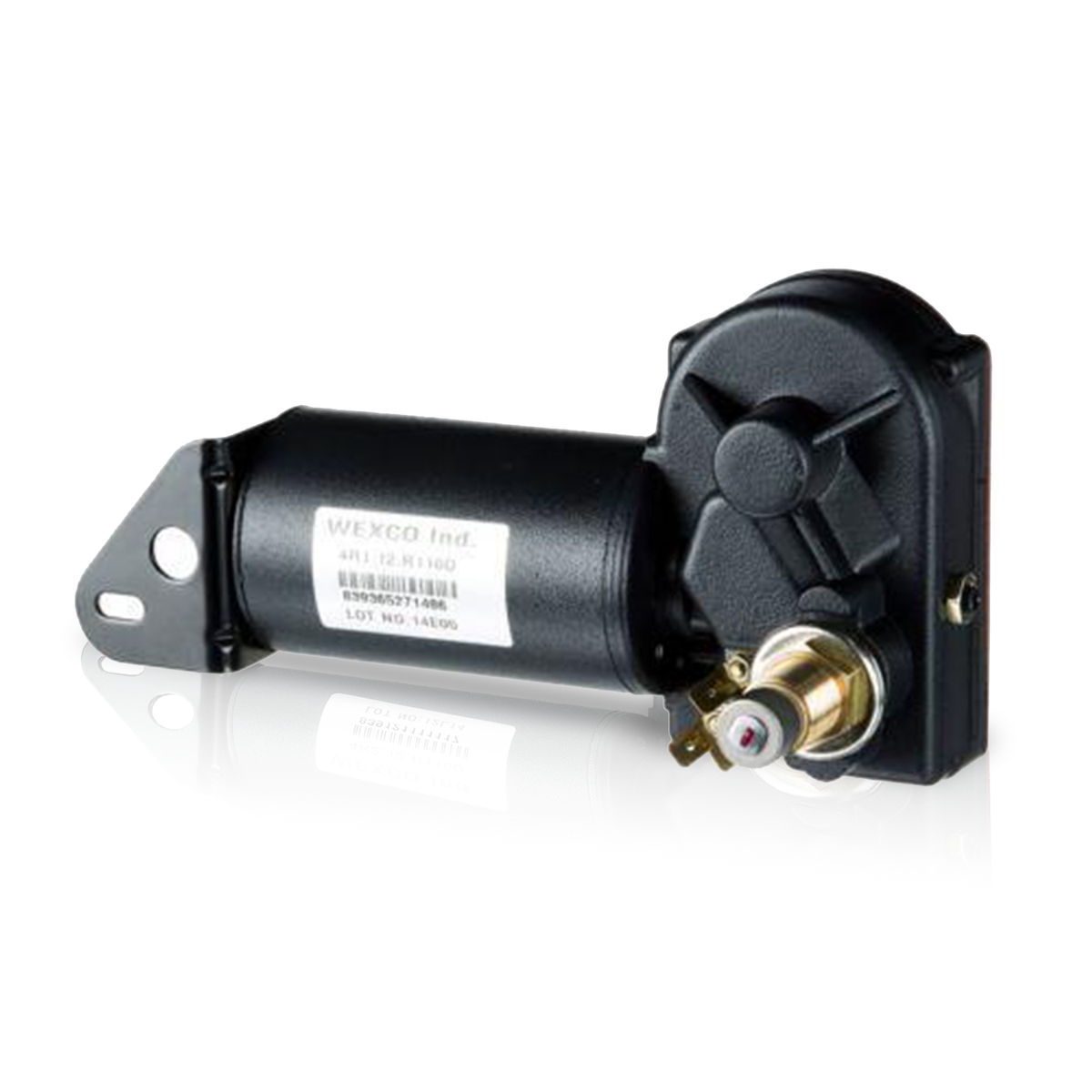

Autotex 4R-Series (WWF) Wiper Motor – 12V & 24V, 1.5", 2.5" & 3.5" Shaft, Multiple Sweep Angles
Quantity breaks and minimum order quantities are applied in the cart.
Specifications
The Autotex 4R-Series (WWF) is a heavy-duty, self-contained oscillating wiper motor trusted in commercial trucks, farm tractors, construction equipment, boats, and specialty vehicles for over 50 years. Choose your voltage (12V or 24V), shaft length (1.5", 2.5", or 3.5"), and sweep angle (40°, 53°, 65°, 85°, 100°, or 110°) to match any application. Wipe angle and park position are fully adjustable in the field. The wiper switch can be wired to the cab or mounted directly on the motor.
Available Variants
| Shaft | Voltage | Sweep Options |
|---|---|---|
| 1.5" | 12V | 40° · 53° · 65° · 85° · 110° |
| 1.5" | 24V | 40° · 53° · 85° · 100° · 110° |
| 2.5" | 12V | 40° · 53° · 65° · 85° · 100° · 110° |
| 2.5" | 24V | 40° · 53° · 65° · 85° · 100° · 110° |
| 3.5" | 12V | 40° · 53° · 65° · 85° · 100° · 110° |
| 3.5" | 24V | 40° · 53° · 65° · 85° · 100° · 110° |
Key Features
- Self-contained oscillating wiper system
- 1/2" drum pivot shaft
- Fully adjustable wipe angle and park position (left or right)
- Switch can be cab-wired or motor-mounted
- Stainless steel shaft, brass housing
- No connector — direct wire
- 12V or 24V
Typical Applications
- Commercial trucks and semi-tractors
- Farm tractors and agricultural equipment
- Construction and heavy equipment
- Marine vessels
- Specialty and custom-built vehicles
Listed on this product:
- Grainger 2YPZ5
- Balkamp 819-1073
- Ongaro 31991
- Marinco - AFI 34001
- Marinco - AFI 34011
- Marinco - AFI 38001
- Marinco - AFI 38011
- Bobcat 6664094
- United Technologies WWF12C1-210
- United Technologies WWF12C1-510
- United Technologies WWF12C1-710
- United Technologies wwf12c1-1010
- United Technologies WWF12C15-210
- United Technologies WWF12C16-210
- United Technologies wwf12c17-210
- United Technologies WWF12C18-210
- United Technologies WWF12C18-510
- United Technologies WWF12C18-710
- Johnson Electric WWF12C1-1010
- Johnson Electric WWF12C15-210
- Johnson Electric WWF12C1-710
- Johnson Electric WWF12C18-210
- Johnson Electric WWF12C18-710
- Johnson Electric WWF12C16-210
- Johnson Electric WWF12C1-210
- Johnson Electric WWF12C18-510
| Brand | Their part number | Part type | Our part | Product |
|---|
| Make | Model | Years | Note | Our part | Product |
|---|
Application data is a guide. Check the part number against the vehicle before fitting.
Nothing here yet.
Autotex 4R-Series (WWF) Wiper Motor – 12V & 24V, 1.5", 2.5" & 3.5" Shaft, Multiple Sweep Angles
The Autotex 4R-Series (WWF) is a heavy-duty, self-contained oscillating wiper motor trusted in commercial trucks, farm tractors, construction equipment, boats, and specialty vehicles for over 50 years. Choose your voltage (12V or 24V), shaft length (1.5", 2.5", or 3.5"), and sweep angle (40°, 53°, 65°, 85°, 100°, or 110°) to match any application. Wipe angle and park position are fully adjustable in the field. The wiper switch can be wired to the cab or mounted directly on the motor.
Available Variants
| Shaft | Voltage | Sweep Options |
|---|---|---|
| 1.5" | 12V | 40° · 53° · 65° · 85° · 110° |
| 1.5" | 24V | 40° · 53° · 85° · 100° · 110° |
| 2.5" | 12V | 40° · 53° · 65° · 85° · 100° · 110° |
| 2.5" | 24V | 40° · 53° · 65° · 85° · 100° · 110° |
| 3.5" | 12V | 40° · 53° · 65° · 85° · 100° · 110° |
| 3.5" | 24V | 40° · 53° · 65° · 85° · 100° · 110° |
Key Features
- Self-contained oscillating wiper system
- 1/2" drum pivot shaft
- Fully adjustable wipe angle and park position (left or right)
- Switch can be cab-wired or motor-mounted
- Stainless steel shaft, brass housing
- No connector — direct wire
- 12V or 24V
Typical Applications
- Commercial trucks and semi-tractors
- Farm tractors and agricultural equipment
- Construction and heavy equipment
- Marine vessels
- Specialty and custom-built vehicles
