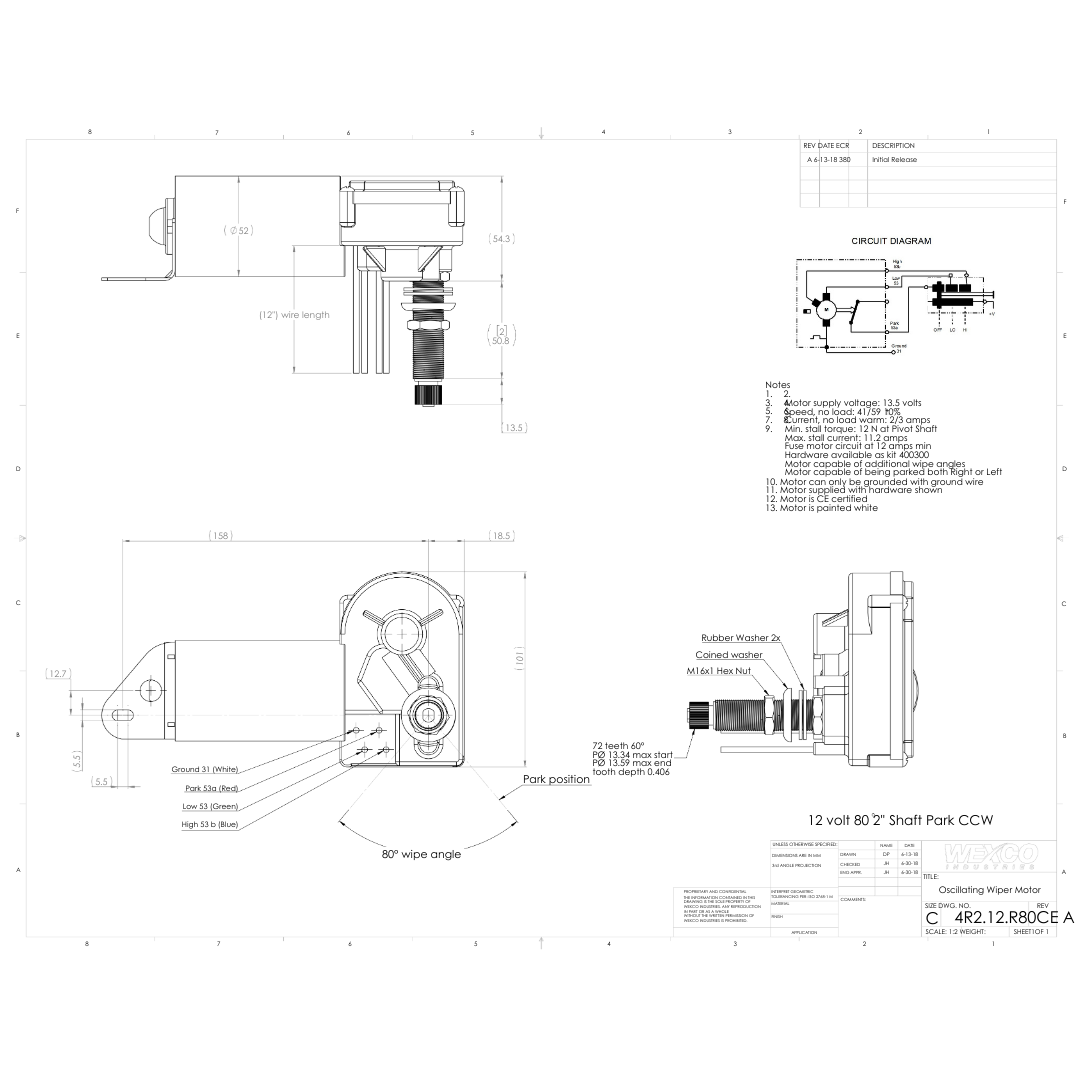

4R2.12.R80DCE-KIT - 12V Marine Wiper Motor Kit, 2" Shaft, 80 Degree Sweep, CE

4R2.12.R80DCE-KIT - 12V Marine Wiper Motor Kit, 2 inch Shaft, 80 Degree, CE

SKU4R2.12.R80DCE-KIT
Ships in 1-3 business days
$154.99

Quantity breaks and minimum order quantities are applied in the cart.

Tell us the vehicle or equipment and we will confirm the OEM cross reference. The part number on this page is sent with your message.

Specifications
Vendor AutoTex
SKU 4R2.12.R80DCE-KIT
Volts 12V
Shaft Length 2"
Default Wipe Angle 80 Degree
Park Position Right
On/Off Switch Included No
Newton Meters (Torque) 18Nm
Speed (RPM) 12Nm
Motor Stall Current 11.2 amps max
CE Certified CE Certified

Need help finding the right part?

Our experts are here to help.

Ask an expert
This kit includes the base 4R2.12.R80CE marine wiper motor along with an additional M16 x 1 brass hex nut required for certain service and replacement applications.
Kit Includes:
  • 1x 4R2.12.R80CE 12V marine wiper motor
  • 1x 400297 M16 x 1 brass hex nut
Motor Specifications:
  • Voltage: 12V
  • Sweep angle: 80 degrees
  • Shaft length: 2 inch
  • CE certified
  • Adjustable park, left or right
  • Wiring: 31 White ground, 53a Red park, 53 Green low, 53b Blue high
  • Minimum fuse rating: 12A

This kit is intended to support service replacements where an additional motor shaft nut is required.
